ABS, Traction and Stability Lights On Together: Fort Worth Diagnosis Guide

Short answer: ABS, traction and stability lights on together almost always mean one shared fault, not three. They run on the same wheel speed sensors and the same control module, so a single failed sensor, a damaged tone ring, an uncalibrated steering angle sensor or a module fault disables all three at once. Read the codes first — the cheap causes are far more common than the expensive one.

Three warning lights arriving at the same moment feels like the car is falling apart. It is usually the opposite. When ABS, traction control and stability control illuminate together, the pattern itself is telling you they share a dependency — and narrowing a fault to one shared input is much easier than chasing three unrelated problems.

This guide walks the diagnosis in the order a technician actually works it, tells you what each outcome costs in Fort Worth as of September 2026, and marks the point where the job becomes module programming rather than a parts replacement.

Why One Fault Turns On Three Lights

The anti-lock brake system is the foundation. It has a wheel speed sensor at each corner, a hydraulic control unit, and an electronic brake control module — the EBCM — that reads those sensors and modulates brake pressure.

Traction control does not have its own sensors. It uses the ABS wheel speed data to notice a wheel spinning faster than the others, then reduces engine torque or applies that brake. Stability control layers on top of both, adding a steering angle sensor and a yaw rate sensor so it can compare where you are steering against where the car is actually going.

Stack those dependencies and the logic is obvious. If a wheel speed sensor goes quiet, ABS loses confidence in its own data and shuts down. Traction control loses its input and shuts down. Stability control loses its foundation and shuts down. One fault, three lights, exactly as designed. The systems fail visibly and turn themselves off rather than acting on bad data — which is the correct behavior for something that can apply your brakes.

The Diagnostic Order That Saves Money

1. Read the stored codes before touching anything

This step is not optional and it is not a formality. The module stores which sensor it lost and often why — signal erratic, signal implausible, no signal, open circuit. That single piece of information usually names the corner of the car to inspect. Guessing costs far more than reading.

A code that names a wheel speed sensor circuit does not automatically mean the sensor failed. It means the module did not get a believable signal from that circuit, which could be the sensor, the wiring, the connector, or the tone ring the sensor reads.

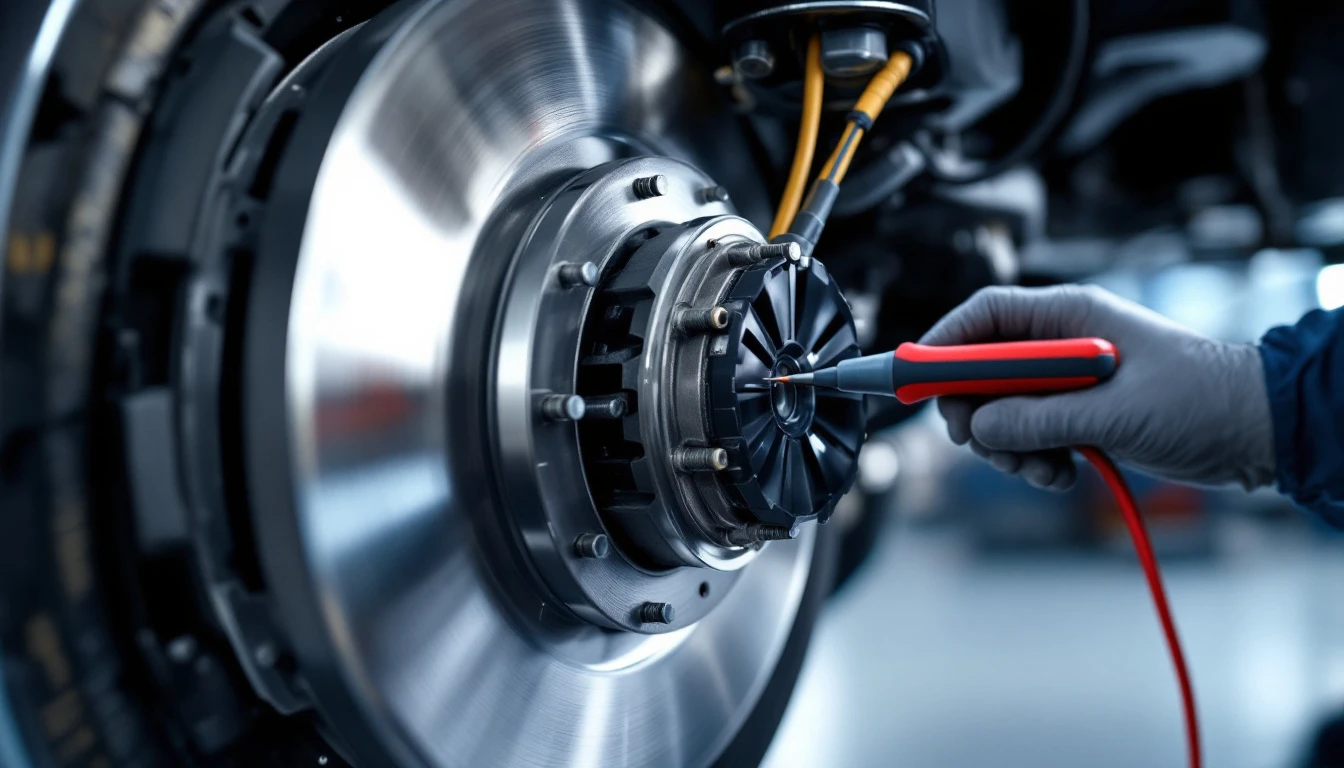

2. Inspect the named corner

Wheel speed sensors live in the worst environment on the vehicle: road spray, brake dust, heat, and constant harness flex from steering and suspension travel. Around Fort Worth the specific enemies are summer heat cycling, construction debris and the occasional deep-water crossing during a Texas downpour.

Look for a chafed harness where it passes the strut or control arm, a corroded connector, a sensor tip packed with metallic brake debris, or a cracked and rusted tone ring at the hub. Any of those explains the code without a module being involved at all.

3. Check the bearing if the sensor is integrated

On a great many modern vehicles the speed sensor and tone ring are built into the hub and bearing assembly. A worn bearing lets the air gap between sensor and ring change as the wheel loads, which produces exactly the erratic signal the module complains about. The tell is a hum or growl that changes when you sway the car gently side to side at speed, arriving in the same period as the warning lights.

4. Ask what happened just before the lights appeared

This is the question that most often shortcuts the whole diagnosis.

• Right after an alignment, a strut job or steering work? Suspect the steering angle sensor's lost zero point. See steering angle sensor calibration.
• Right after a collision repair? Suspect several disturbed calibrations at once — our post-collision module programming cost guide covers which ones.
• Right after a battery replacement or a jump start? Suspect a low-voltage event that set faults across several modules.
• Right after a module was replaced? Suspect a programming or configuration step that was never completed — see new module installed and the car still will not start.
• Nothing happened, it just appeared? Back to the sensor and wiring path.

5. Only then consider the module

An electronic brake control module can genuinely fail — internal solder cracks and moisture intrusion are real failure modes, and some platforms are known for it. But it is the last conclusion, not the first, because it is the most expensive one and because a module that is communicating and reporting sensor faults is a module doing its job. Our ABS module programming and EBCM replacement guide covers what that work involves.

What Each Outcome Costs in Fort Worth

Likely cause	How it usually presents	What it takes to fix	2026 cost
Wheel speed sensor or wiring	Code names one specific corner	Sensor or harness replacement	Parts and labor; the least expensive outcome
Damaged tone ring at the hub	Erratic signal, often speed-dependent	Hub or bearing assembly replacement	Parts and labor, no programming
Worn wheel bearing with integrated sensor	Hum that changes when cornering, plus lights	Hub and bearing assembly	Parts and labor, no programming
Steering angle sensor out of calibration	Appeared right after alignment or steering work	Scan-tool calibration after alignment	Quote required after diagnosis
Low-voltage event across modules	Multiple unrelated codes after a jump or battery	Clear faults, verify charging system	Often clears with proper diagnosis
EBCM / ABS module failure	Module not communicating or internally faulted	Module replacement plus programming	$150–$500 programming, plus the module
Module replaced but never configured	Codes persist after a parts swap	Programming and configuration to the vehicle	$150–$500 depending on platform

Pricing note: ranges are for mobile module programming in the Fort Worth area as of September 2026 and depend on year, make, model and security generation. Mechanical parts and their installation are separate. Quote-required lines are genuinely quote-required, not a stalling tactic.

The Part People Skip: The Bleed Procedure

If the hydraulic side of the ABS unit is opened — a new modulator, a replaced module assembly, or air introduced during a brake job — the system usually needs a scan-tool-commanded bleed. The tool cycles the valves and pump inside the ABS unit to push air out of passages that a conventional pedal bleed simply cannot reach.

Skip it and the pedal feels soft or the brakes feel inconsistent, and the natural but wrong conclusion is that the new module is defective. This is why ABS work belongs with a bidirectional, programming-capable tool rather than a code reader.

What a Proper Diagnostic Visit Looks Like

A useful visit on this complaint has a shape, and knowing it makes it easy to tell a real diagnosis from a parts-cannon guess.

It starts with a full scan of every module rather than just the brake system, because a fault that also appears in the engine or body modules is telling you something a single-system scan would hide. Then live data: the technician watches all four wheel speed signals while the vehicle rolls, which exposes a sensor that reports plausibly at rest and drops out under load. Then the physical inspection of whichever corner the data implicates — connector, harness routing, sensor tip, tone ring.

Only after those three steps does anyone talk about a module. If a technician quotes you a control module before watching live wheel speed data, they are guessing with your money.

A Straight Word About Safety

Your base brakes are hydraulic and mechanical and they do not switch off when these lights come on. You can stop the car.

What you have lost is the electronic safety net: anti-lock modulation in a panic stop, traction control when a wheel spins on a wet road, and stability control when the back end steps out. On a dry road at moderate speed you will likely never notice. In a hard stop on wet I-35W in a Texas thunderstorm, you would.

That is the honest framing — not an emergency, not something to ignore for a year either. Get the codes read, and take the answer seriously.

When This Overlaps Other Module Symptoms

Brake and stability faults rarely arrive alone on a car with a deeper electrical problem. Two adjacent patterns worth recognizing:

• Multiple unrelated warning lights plus dead gauges usually means a communication network fault rather than a brake fault. See all warning lights on with dead gauges.
• Shifter and brake interlock problems alongside stability faults point at body-side control rather than the ABS module. See car will not shift out of park.

If your fault turns out to need a replacement module, the used module programming cost guide covers when a salvage unit is a real saving and when it is a trap.

Who Should Do This Work

Any technician touching a brake control module should have three things: a bidirectional scan tool with programming capability for your platform, a current software subscription, and the willingness to show you the codes before and after. In Texas, locksmith and related security work is licensed through the Texas Department of Public Safety Private Security Bureau, which is the agency any credential claim should trace back to.

For the standards behind these systems: NHTSA sets the federal requirements for electronic stability control on passenger vehicles (nhtsa.gov), SAE International publishes the diagnostic and network standards these modules are built to (sae.org), and the Federal Trade Commission covers your rights in auto repair (ftc.gov).

Frequently Asked Questions

Why do the ABS, traction and stability lights all come on at once?

Because they share hardware. Traction control and stability control both depend on the ABS system's wheel speed sensors and its control module to do their work, so a single fault upstream disables all three at the same time. One illuminated light is a clue; three illuminated together is actually good news diagnostically, because it points at a shared input or the module itself rather than three separate failures.

Is it safe to drive with all three lights on?

Your normal brakes still work — the base hydraulic braking system is separate and does not shut off. What you lose is anti-lock function in a panic stop and the traction and stability systems that catch a skid. That is a real reduction in safety margin, especially in rain, so it is worth driving conservatively and getting it read promptly rather than living with it for months.

What is the most common cause?

A single failed wheel speed sensor or its wiring, by a wide margin. The sensors live at the wheels in road spray, salt and brake dust, and their harnesses flex constantly. A damaged tone ring at the hub is the close second. Both are far more common than an actual module failure, which is why reading the codes before buying parts matters so much.

Can a bad wheel bearing cause these lights?

Yes, on many vehicles, because the speed sensor and its tone ring are built into the bearing and hub assembly. A worn bearing lets the sensor gap change as the wheel loads and unloads, producing an erratic signal that the module rejects. If you have a humming noise that changes with cornering plus these lights, the bearing is a strong suspect.

Does the ABS module need programming if it is replaced?

Yes on nearly all modern vehicles. A replacement electronic brake control module has to be programmed and configured to your vehicle before the system will function, and many platforms require a bidirectional scan tool to run the automated bleed procedure afterward. As of September 2026, module programming generally runs $150 to $500 depending on platform, plus the module itself.

Why do the lights come back after an alignment or suspension work?

Usually because the steering angle sensor lost its zero point. The stability system compares your steering input to what the vehicle is actually doing, and any alignment or steering column work invalidates the stored reference. The fix is a calibration procedure done after the alignment is complete, not before — it is quick with the right tool and it is easy to forget.

How much does it cost to fix in Fort Worth?

It depends on which cause it turns out to be. A failed wheel speed sensor is a modest parts-and-labor repair. A steering angle calibration after alignment work is a short scan-tool procedure quoted after diagnosis. A genuine module replacement with programming is the expensive end, generally $150 to $500 for the programming plus the module. Diagnosis first is what keeps you out of the expensive end unnecessarily.

Get the Codes Read in Fort Worth

If all three lights are on, the useful first step is a proper scan that names the failing circuit. We come to you, read the codes, tell you plainly whether it is a sensor job or a module job, and quote the programming side before doing anything. Call (817) 668-3801 or use our contact page. Coverage is on our Fort Worth service area page.
